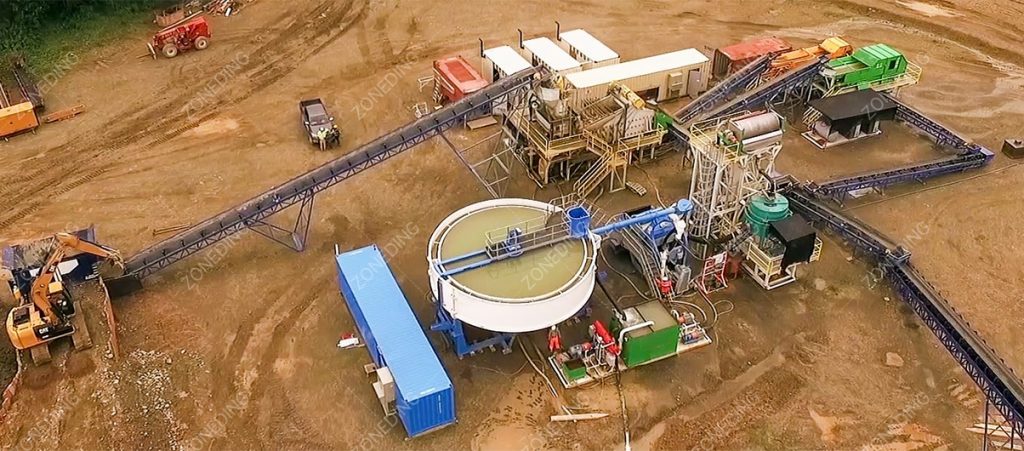

What is a Gold Processing Plant? What is its Core Role in Gold Mining?

It’s an integrated facility using various processes (crushing, grinding, leaching, recovery) to chemically and physically separate gold from waste rock on a large scale. It’s the vital link between the mine and marketable gold.

%Simple diagram showing Mine -> Processing Plant -> Gold Bar

Deeper Dive: The Value Creation Engine

A gold processing plant, often called a mill, is where the value hidden in the rock is unlocked.

System, Not Just Machines

It’s not just one machine, but a sequence of interconnected unit operations. This includes crushers, mills, tanks, pumps, filters, and more, all working together. The design ensures continuous material flow and optimized recovery.

The Core Goal

The primary objective is concentration and purification. Mined ore might contain only a few grams of gold per tonne (g/t). The plant concentrates this significantly, producing a final product (like doré bars) that can be easily transported and sold to refineries for further purification into pure gold bullion. Without the processing plant, the mined rock has little economic value. It transforms raw geological resources into tradable commodities.

Essential Link

It sits between the mining operation (extraction of ore) and the final refining/sales stage. Its efficiency directly determines the profitability of the entire gold mining venture.

How Do My Gold Ore Characteristics Dictate the Plant Design? (Critical First Step!)

Detailed ore testing (mineralogy, metallurgical tests) is crucial. It reveals gold’s form (free, locked, refractory), particle size, associated minerals, and how it responds to different recovery methods, directly guiding flowsheet selection.

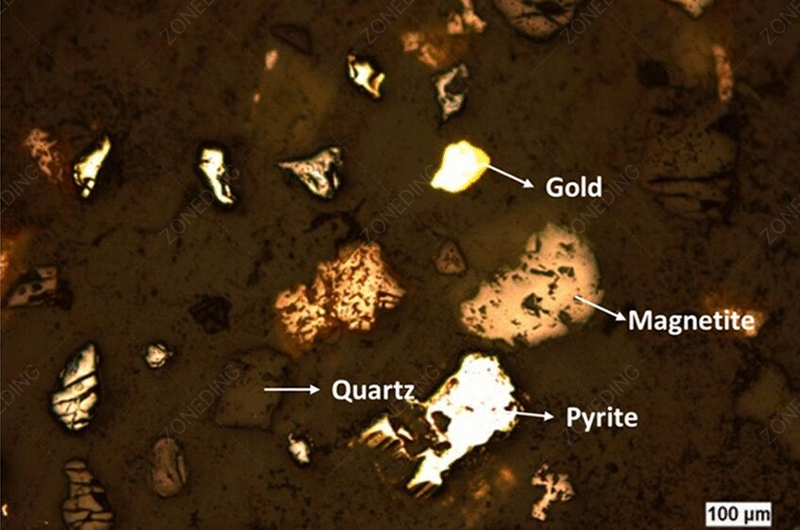

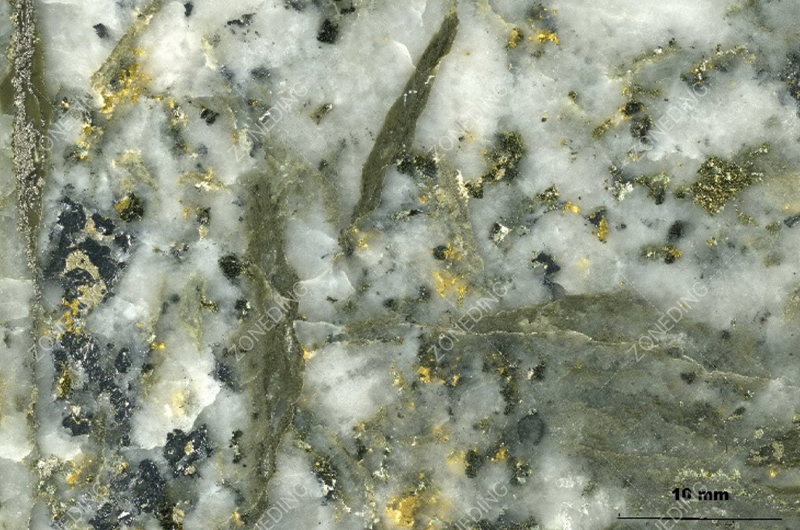

%Microscopic image of gold ore showing gold particles

Why Ore Testing is Non-Negotiable

Before designing any circuit, comprehensive testing is essential. This involves:

• Mineralogy: Identifying all minerals present, their proportions, and textures. Crucially, understanding how gold occurs (its “deportment”).
• Metallurgical Testing (Process Amenability): Lab and pilot-scale tests simulating different processing routes (gravity, flotation, leaching) to determine the best recovery method, reagent consumptions, and achievable recovery rates.

Key Ore Properties

• Gold Deportment: Is the gold present as free-milling native gold? Is it finely disseminated within sulfides (like pyrite or arsenopyrite)? Is it locked within silica? Is it chemically combined (tellurides)? This dictates the processing complexity.
• Particle Size: The size of the gold grains determines the required grinding fineness for liberation. Coarse gold might suit gravity recovery.
• Ore Type: Is it easily leached oxide ore? Or refractory sulfide ore needing pre-treatment (like roasting or pressure oxidation)? Is it alluvial (placer) requiring washing and gravity methods? Are there troublesome elements like arsenic or carbon (preg-robbing)?

Understanding Liberation & Variability

• Liberation vs. P80: Simply grinding to a target size (e.g., P80 passing 75 microns) isn’t enough. Insight: Detailed mineralogy reveals if the gold is actually freed in a recoverable form at that grind, or if it remains locked. Designing based only on P80 can lead to poor recovery if liberation isn’t understood.
• Handling Ore Variability: Test work often uses averages. Insight: Real ore feed varies daily. A robust plant must be designed with flexibility to handle expected variations in grade, hardness, mineralogy, and clay content, not just the average. Designing only for the average courts failure.

Byproduct Value

Does the ore contain significant silver, copper, lead, or zinc? A comprehensive testing program will identify these, allowing the design to incorporate circuits for their recovery, adding potential revenue streams.

What are the Main Gold Processing Flowsheets? How to Choose the Best for My Ore?

Common routes include CIL/CIP (for fine leachable gold), Heap Leaching (low-grade oxides), Gravity Concentration (coarse gold), Flotation (sulfide ores), or combinations. The optimal choice depends entirely on the ore test results.

%Simplified flow diagrams comparing CIL, Heap Leach, Gravity

Deeper Dive: Matching Process to Ore

Selecting the most suitable flowsheet is a core task driven by metallurgical test work:

CIL/CIP: The Workhorse

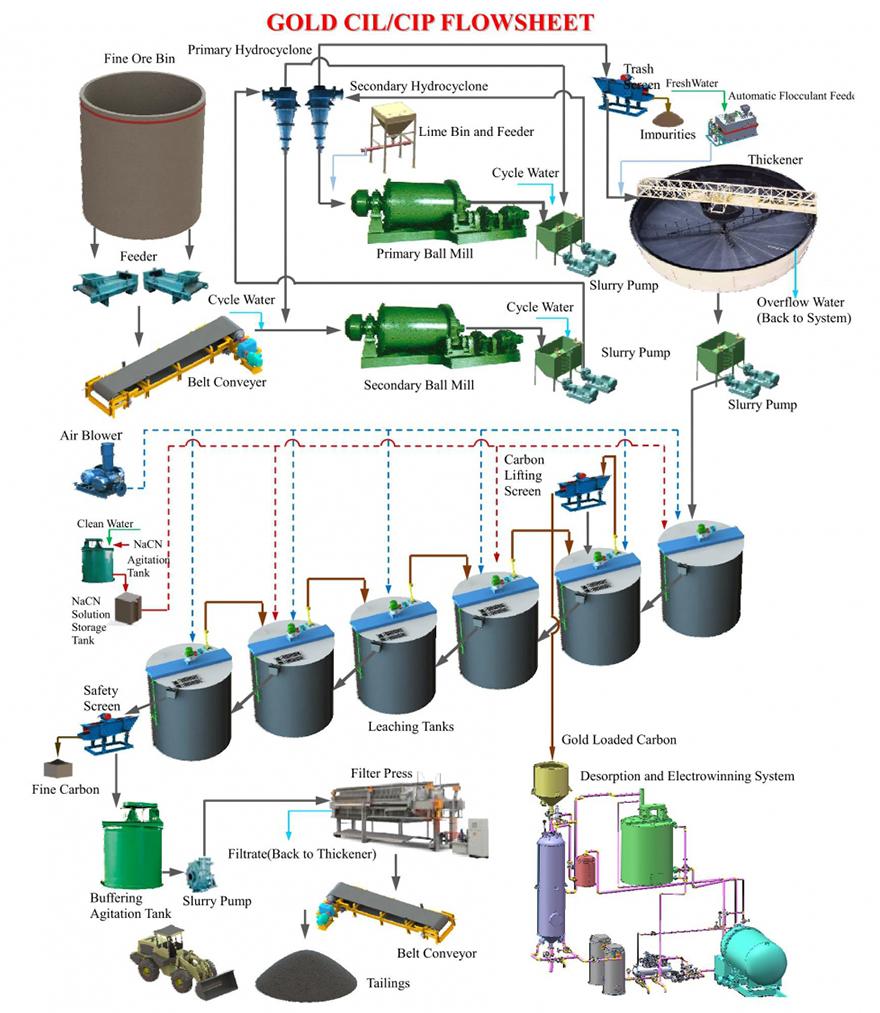

• Carbon-in-Leach (CIL) / Carbon-in-Pulp (CIP): Gold is leached using cyanide solution, and simultaneously (CIL) or subsequently (CIP) adsorbed onto activated carbon.
• Best For: Ores where gold is finely disseminated and readily leachable after grinding. Widely used for its efficiency.
• Pros: High recovery for suitable ores, well-established technology.
• Cons: Requires significant capital investment, uses cyanide, less effective for very coarse gold or some refractory ores.

Heap Leaching: Low-Grade Solution

• Process: Crushed ore is stacked on impermeable pads, and a dilute cyanide solution percolates through the heap, dissolving gold. The gold-bearing solution is collected and processed.
• Best For: Low-grade oxide ores where extensive grinding is uneconomical. Also used for reprocessing old waste dumps.
• Pros: Significantly lower capital and operating costs than milling/CIL. Simple operation.
• Cons: Lower gold recovery rates, longer leach cycles (weeks/months), sensitive to climate and ore permeability.

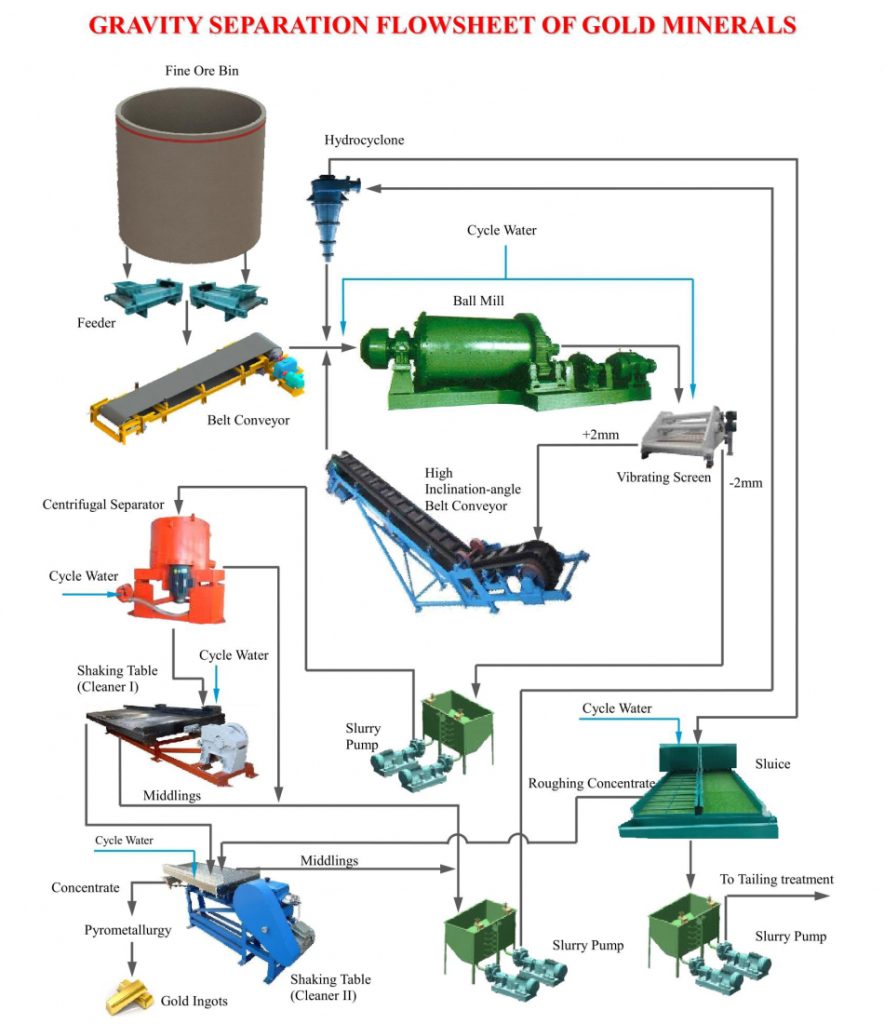

Gravity Concentration: Early Gold Wins (Insight!)

• Process: Uses density differences to separate heavy free gold particles from lighter gangue minerals. Devices include jigs, spirals, shaking tables, and centrifugal concentrators (e.g., Knelson, Falcon).
• Best For: Ores containing coarse or relatively coarse free gold.
• Insight: Often underestimated, implementing efficient gravity recovery early (e.g., in the grinding circuit) can recover 20-70%+ of gold cheaply and quickly, reducing load on downstream circuits like CIL/CIP and providing rapid cash flow. It’s often the lowest-cost gold recovery method.

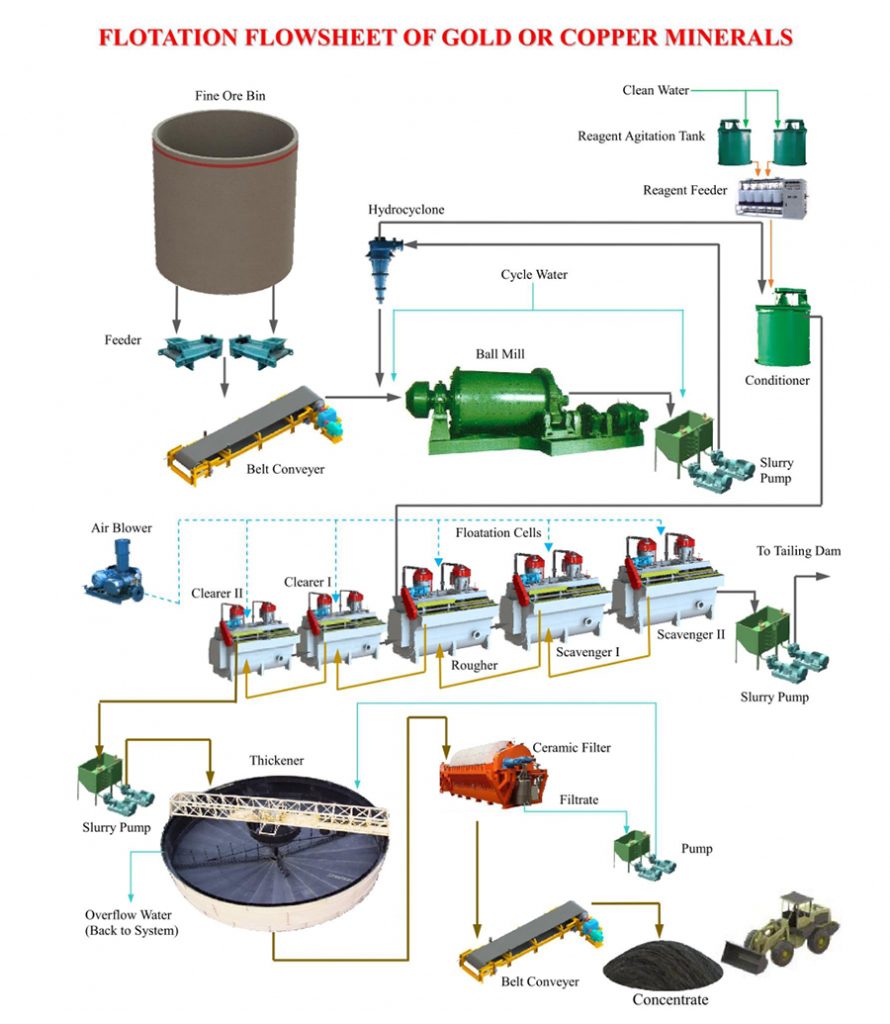

Flotation: Handling Sulfides

• Process: Uses reagents to make specific minerals (often gold-bearing sulfides like pyrite/arsenopyrite) attach to air bubbles and float, separating them from non-sulfide gangue.
• Role: Can be used to create a high-grade sulfide concentrate (containing gold) for further treatment (e.g., intensive cyanidation, roasting, or sale to a smelter), or as a pre-treatment step to remove sulfides before leaching.
• Best For: Sulfidic gold ores where gold is associated with sulfide minerals.

Combination Flowsheets

• Why Combine?: Ores often contain gold in multiple forms or require pre-treatment. Insight: Rarely does one single method capture all the gold economically.
• Examples: Gravity + CIL (recover coarse gold first, leach the rest); Flotation + Cyanidation (concentrate sulfides, then leach the concentrate); Roasting/Oxidation + CIL (pre-treat refractory ores before leaching). The optimal combination is dictated by detailed ore test work. ZONEDING MACHINE offers equipment for all these major processing routes.

What are the Main Stages and Core Equipment in a Typical Gold Plant (e.g., CIL)?

A typical CIL plant includes: Crushing/Screening (jaw/cone crushers, screens), Grinding/Classification (ball/rod mills, cyclones), Leaching/Adsorption (tanks, carbon), Elution/Electrowinning (stripping circuit), Smelting (furnace), and Tailings/Water Management (thickeners, filters).

%Detailed diagram showing material flow through a CIL plant’s stages

Deeper Dive: Anatomy of a CIL Plant

Here are the essential functional areas and equipment:

Crushing & Screening

• Goal: Reduce large mined rocks to a manageable size for grinding.
• Equipment: Typically involves multiple stages. Primary crushing often uses Jaw Crushers. Secondary and Tertiary crushing use Cone Crushers or Impact Crushers, working with Vibrating Screens to classify sizes and send oversized material back for more crushing. ZONEDING provides a full range of these crushers and screens.

Grinding & Classification

• Goal: Liberate fine gold particles from the host rock by grinding the ore into a slurry.
• Equipment: Ball Mills or Rod Mills are commonly used. They work in closed circuit with Hydrocyclones (or screens), which classify the slurry. Undersized particles (fine enough) proceed to leaching; oversized particles are returned to the mill for further grinding.

(Optional) Pre-treatment

• Goal: Address refractory ores (gold locked in sulfides or carbonaceous material) that don’t leach well directly.
• Equipment: May include Roasting furnaces, Pressure Oxidation (POX) autoclaves, or Ultra-Fine Grinding (UFG) mills.

Leaching & Adsorption (CIL)

• Goal: Dissolve gold into a cyanide solution and capture it onto activated carbon.
• Equipment: A series of large, agitated Leach Tanks where ore slurry is mixed with cyanide and air (oxygen). Activated carbon is added and moves counter-current to the slurry flow through Interstage Screens, adsorbing the dissolved gold.

Carbon Management is Crucial (Insight!)

• Insight: The carbon circuit requires meticulous management. Issues like carbon fines generation (loss of gold), poor screening (inefficiency), incomplete elution (gold recycle), or carbon fouling reduce recovery. Proper carbon selection, regeneration, and screen maintenance are vital.

Gold Recovery & Refining

• Elution (Stripping): Loaded carbon is removed, and gold is stripped off using a hot caustic/cyanide solution in an Elution Column.
• Electrowinning: Gold is recovered from the rich elution solution onto cathodes (steel wool) in Electrowinning Cells.
• Smelting: Gold sludge from the cathodes is dried, mixed with fluxes, and melted in a Furnace to produce doré bars (a semi-pure alloy of gold and silver).

Tailings & Water Management

• Goal: Safely dispose of waste slurry (tailings) and recycle process water.
• Equipment: Thickeners (to recover water), Filters (further dewatering), Tailings Storage Facility (TSF or tailings dam), Cyanide Destruction circuit (to treat effluent before discharge/recycle), Water Treatment Plant.

What Key Scale and Investment Factors Affect Gold Plant Construction?

Key factors include the planned processing rate (Tonnes Per Day – TPD), driven by mine output and ore grade. Major costs involve equipment, civil works, installation, commissioning, permits, and ongoing operational expenses (OPEX).

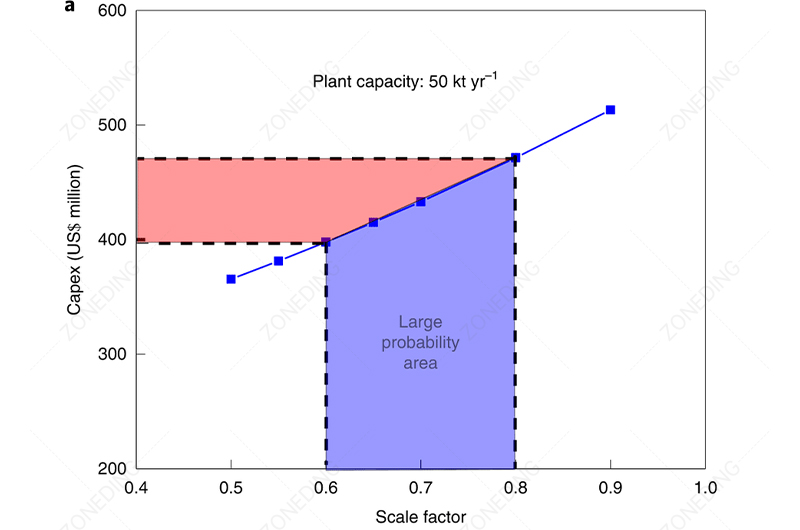

%Chart illustrating relationship between Plant TPD and typical CAPEX range

Deeper Dive: Sizing Up the Investment

Building a gold plant is a major capital undertaking:

Determining Plant Capacity (TPD)

• The target TPD is based on the mine’s sustainable production rate, ore grade (higher grade might allow smaller TPD for same gold output), deposit size/life, and market conditions.
• Feasibility studies use mine plans and economic models to determine the optimal processing rate.

Major Investment Areas (CAPEX)

• Equipment: Purchase cost of all processing machinery (crushers, mills, tanks, pumps, filters, etc.) – often the largest single component.
• Civil Works: Earthworks, concrete foundations, roads, buildings (control room, workshop, warehouse, admin). Can be substantial, especially for large fixed plants.
• Installation & Erection: Labor, cranes, structural steel, piping, electrical installation.
• Engineering & Design: Costs for feasibility studies, detailed engineering, and project management.
• Commissioning & Start-up: Costs associated with testing and ramping up the plant.
• Permitting & Licensing: Environmental permits, operating licenses.
• Infrastructure: Power lines, water pipelines, tailings dam construction.

Impact of Scale & Process

• Larger TPD generally means larger, more expensive equipment and infrastructure.
• Complex processes (e.g., refractory ore treatment) significantly increase CAPEX compared to simpler circuits like heap leaching.

Modular Options for Flexibility

• For smaller deposits, pilot projects, or faster deployment, Skid-Mounted or Containerized plant modules can be considered. ZONEDING offers modular solutions. They reduce site construction time and civil costs but may have higher equipment cost per ton capacity and scale limitations.

Scale-Up Challenges (Insight!)

• Insight: Success at pilot scale doesn’t automatically guarantee smooth operation at full scale. Material handling, process control complexity, and maintenance logistics become much more critical as size increases. Ensure the design considers industrial robustness and operability.

How Should the Plant Layout Be Planned? What About Utilities (Water, Power, Reagents)?

Thinking about the physical arrangement of the plant? Efficient layout and reliable utilities are fundamental for smooth and safe operations.

Layout planning prioritizes efficient material flow, safety (traffic, hazardous areas), maintenance access, environmental containment, and future expansion potential. Reliable water, power, and secure reagent storage are essential prerequisites.

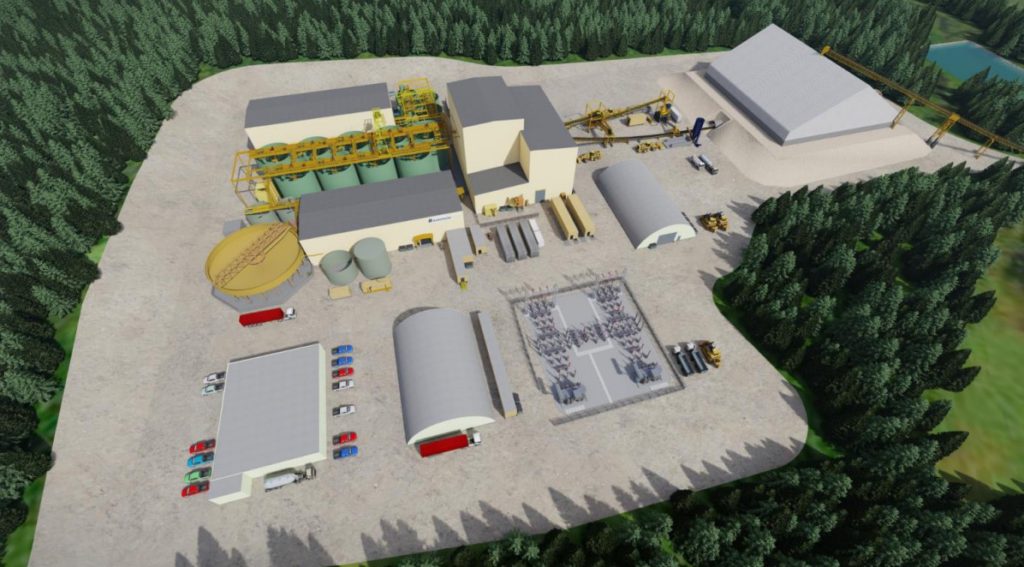

%Example of a well-designed gold plant site layout plan

Deeper Dive: Site Planning Essentials

A well-thought-out site plan avoids operational headaches:

Plant Layout Principles

• Material Flow: Arrange equipment logically to minimize conveying distances and elevation changes. Follows the process flowsheet.
• Safety: Separate mobile equipment traffic from personnel walkways. Isolate hazardous areas (e.g., cyanide storage/handling, smelting). Provide clear emergency access routes.
• Maintenance Access: Ensure sufficient space around major equipment for cranes, forklifts, and personnel during maintenance (e.g., mill relining, screen changes).
• Environmental Control: Position noisy or dusty equipment appropriately. Design containment areas for potential spills (reagent storage, processing areas).
• Expandability: Insight: Consider potential future upgrades or circuit additions during initial layout. Leaving space strategically can save significant costs later.

Water Supply & Management (Insight!)

• Quantity: Gold processing (especially CIL/CIP) is water-intensive. Secure a reliable source of sufficient quantity (river, borehole, dam).
• Quality: Insight: Water quality is a critical, often overlooked ‘reagent’. Salinity, hardness, suspended solids impact reagent consumption, scaling, and metallurgy. Test water quality thoroughly and plan for treatment or careful recycling strategies. Water balance modeling is crucial.

Power Requirements

• Processing plants are major electricity consumers (especially grinding mills). Secure a stable and cost-effective power supply (grid connection preferred, or appropriately sized on-site generation).

Reagent Handling & Storage

• Provide dedicated, secure, and compliant storage facilities for all reagents, especially hazardous ones like cyanide. Design safe unloading, mixing, and distribution systems. Cyanide storage often requires specific regulatory compliance (e.g., ICMI code).

Where Do the Main Operating Costs Come From in a Gold Plant? How Can They Be Optimized?

Major OPEX drivers are power (especially grinding), reagents (cyanide, lime, carbon, flotation chemicals), grinding media (balls/rods), maintenance (parts, labor), and personnel. Optimization focuses on efficiency improvements and minimizing waste.

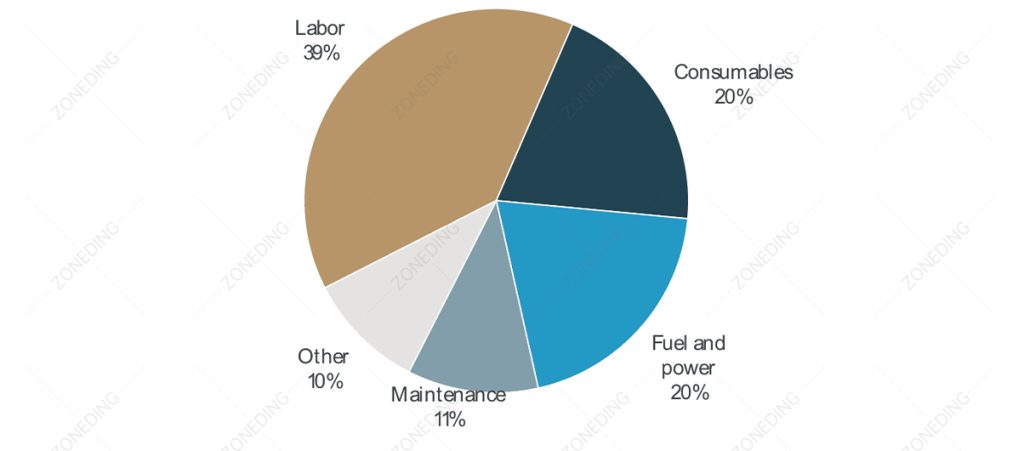

%Pie chart showing typical OPEX breakdown for a gold plant

Deeper Dive: Managing Ongoing Expenses

Controlling OPEX requires continuous monitoring and effort:

Key OPEX Drivers

• Energy Consumption: Grinding circuits are typically the largest power consumers. Optimization here (e.g., efficient mills like those from ZONEDING, proper circuit control) has a big impact.
• Reagent & Media Costs:
  • Cyanide consumption depends on ore mineralogy and leach efficiency.
  • Lime is used for pH control.
  • Activated carbon requires periodic regeneration and replacement.
  • Flotation reagents (collectors, frothers, depressants).
  • Steel grinding balls or rods consumed during milling.
• Maintenance & Spares: Scheduled maintenance, wear parts (liners, pump parts, screen panels), and unplanned repairs. Having reliable equipment and good preventative maintenance programs minimizes this.
• Labor: Salaries for operators, maintenance crews, metallurgists, lab technicians, management.

Optimization via Control & Data (Insight!)

• Process Control: Implementing robust process control strategies (e.g., automated reagent dosing, mill load control) minimizes waste and maximizes recovery.
• Monitoring & Analysis: Insight: Accurate sampling and assaying are fundamental. Reliable data on feed grades, intermediate streams, and tailings allows metallurgists to identify inefficiencies and make informed adjustments. Poor data leads to guesswork.
• Efficiency Improvements: Regularly review wear part performance, energy usage patterns, and reagent consumption rates to identify areas for improvement.
• Metallurgical Optimization: Continuous testing and adjustment of parameters (grind size, leach time, reagent levels) to maximize gold recovery for the current ore feed.

How Important are Environmental Protection and Safety in Plant Design & Operation?

Thinking about permits and long-term liability? Environmental stewardship and worker safety are not optional extras; they are fundamental to sustainable and responsible gold mining.

They are critically important. Strict regulations govern tailings disposal, cyanide management, water discharge, air quality, and worker safety. Integrating E&S principles from the design phase minimizes risks and ensures operational viability.

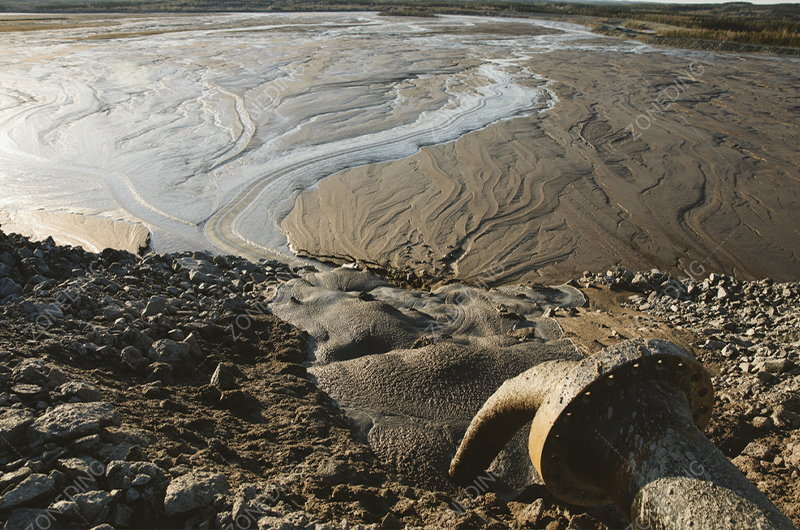

%Image showing environmentally sound tailings management or safety training

Deeper Dive: Non-Negotiable Responsibilities

Neglecting environmental protection and safety leads to costly shutdowns, fines, reputational damage, and potential harm.

Tailings Management: A Long-Term View (Insight!)

• Design & Construction: Tailings Storage Facilities (TSFs) must be engineered for long-term physical and geochemical stability to prevent dam failures and environmental contamination.
• Alternatives: Insight: Evaluate alternatives to conventional wet tailings upfront. Thickened, paste, or filtered tailings reduce water consumption, minimize dam footprint, improve stability, and can lower long-term closure costs, despite potentially higher initial CAPEX.

Cyanide Handling & Detoxification (Insight!)

• Safety Protocols: Strict procedures for cyanide transport, storage, handling, and emergency response are mandatory (often guided by the International Cyanide Management Code – ICMI).
• Effluent Treatment: Insight: Cyanide destruction is complex and costly. Plant effluent must be treated to reduce cyanide concentrations to legally permissible levels before discharge or recycling. Various technologies exist (e.g., INCO SO2/Air, Caro’s Acid), and the choice depends on regulations, costs, and water chemistry.

Dust, Noise, and Water

• Implement dust suppression measures (sprays, enclosures, collectors) at crushers, conveyors, and transfer points.
• Control noise levels through equipment selection and acoustic insulation.
• Manage all site water effectively to prevent uncontrolled discharges.

Worker Safety Protocols

• Implement comprehensive Occupational Health and Safety (OHS) management systems.
• Provide appropriate Personal Protective Equipment (PPE).
• Ensure thorough training, especially for hazardous tasks (e.g., cyanide handling, working at heights, confined space entry, Lock-Out/Tag-Out procedures).
